CI71
Mobile Computer Capacitive Fingerprint

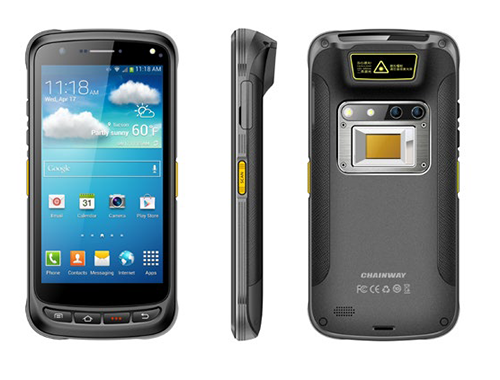

C71 is an Android rugged mobile computer. As a replacement of C70E, it is improved to enable capacitive fingerprint sensor TCS1. C71 is revolutionized to be FIPS 201 compliant, and enable secure data encryption and fake finger detection. With its powerful quad-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, capacitive fingerprint scanner, 1D/2D barcoding as well as other data capture options, including iris recognition and HF RFID/NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.

Features

Most Powerful Application Performance
C71 prides itself on Android 6.0 OS, quad-core processor, and 2GB of RAM, 16GB of ROM, plus 32GB SD card expansion.

Multiple Data Capture Options
C71 features class-leading 1D/2D barcode scanning, optional HF RFID/NFC and Iris recognition.

4G LTE — Faster Connectivity
With fast and stable 4G, Wi-Fi, Bluetooth connectivity, C71 will never interrupt your work both indoors and outdoors.

Rugged and Compact
With IP67 sealing, workers can still expect reliable performance when they drop it to the concrete carelessly, use it in dusty areas, or even get it wet.

Large Screen & Powerful Battery
It adopts 5.2'' high-resolution IPS screen. It also supports operation with wet hands or gloves. 5000mAh battery allows a full day's non-stop work.

Capacitive Fingerprint Sensor
C71 can be configured with Crossmatch capacitive TCS1/TCS2 fingerprint module. Running powerful algorithms, they are FIPS 201, STQC compliant with multiple template formats available and capable of fake fingerprint detection. It is also small in size, durable, low-power-consumption and immune to sunlight. All make it to effortlessly capture a clear excellent image of the ridges and valleys of fingers, whether the finger is wet, dry or damaged, or the fingerprint is shallow. C71 can be widely used in security and access control, time & attendance, population census, national election etc.

Multiple Security Principles
Symmetric and asymmetric keys, random key generator, image and template encryption, and secure channel encryption are available to ensure the communication between C71 and distant / cloud server are protected. Enterprise administrator can easily control right of root or installing some software applications via authorization strategy or other MDM options

Physical Characteristics

Dimensions 164.2*78.8*17.5mm/6.46*3.10*0.69in (the thickest: 24.5mm/0.96in)
Weight 230-260g/8.11-9.17oz (dependent)
Display 5.2'' IPS FHD 1920x1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000mAh
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interface USB 2.0 Type-C, OTG
Audio speaker, 2 microphones
Keypad 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor

Performance

CPU Cortex-A53 Quad-core 1.3GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 32 GB Micro SD card

Developing Environment

OS Android 6.0
SDK Software Development Kit (capacitive fingerprint based on
crossmatch SDK)
Language Java
Tool Eclipse / Android Studio

User Environment

Operating Temp. 14 F to 12 F / -10 C to 50 C
Storage Temp. -40 F to 158 F / -40 C to 70 C
Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Sealing IP67
ESD ±8KV air discharge, ±4KV conductive discharge


Communication

WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN(Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna


Data Collection

Fingerprint

Sensor TCS1/TCS2 Capactive
Sensing Area (mm) 12.8×18; 10.4x14.4
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel


Camera

Camera 13MP autofocus camera with flash


Barcode Scanning

1D Linear Scanner Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of
5, Codabar, MSI, RSS, etc.
2D Imager Scanner Zebra SE4710/Zebra SE4750MR/Honeywell N6603, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,
Datamatrix, QR code, Micro QR code, Aztec,
MaxiCode; Postal Codes: US PostNet, US Planet,
UK Postal, Australian Postal, Japan Postal, Dutch
Postal (KIX), etc.

RFID (Optional)

HF
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693
Chips M1 card (S50/S70), M0 (Ultralight),
M3 (Desfire D40/D41/D81), CPU_A card
CPU_B card
ICODE II, TI2048, LRI64K
Others for customization
Range 3-8cm

IRIS (Optional)

Rate <150ms
Range 20-40cm
FAR 1/10000000


NFC (Optional)

Frequency 13.56MHz
Protocol ISO/IEC 18092 (ECMA 340)
ISO/IEC 21481 (ECMA 352)
Range 2-4cm
