| The Duplex scan module VTM 300 designed for VTM (Virtual Teller Machine) and self-service Kiosk. The Duplex scan module VTM 300 brings reliable and efficient document input to the VTM and self-service kiosk system. Built-in multiple sensors to auto-feeding paper when detected, prevent paper skew or jam during scan process. With 2 eject paper output directions (forward or backward), system programmer can easily setup scan flow to accept the document or return to user. | |
| Main Features: •The scanner module designed for industry application •Auto detect document skew angle to prevent paper jam •High scanning speed (30ppm@300dpi/Color/Duplex/A4) •Easy to maintain and install |
|

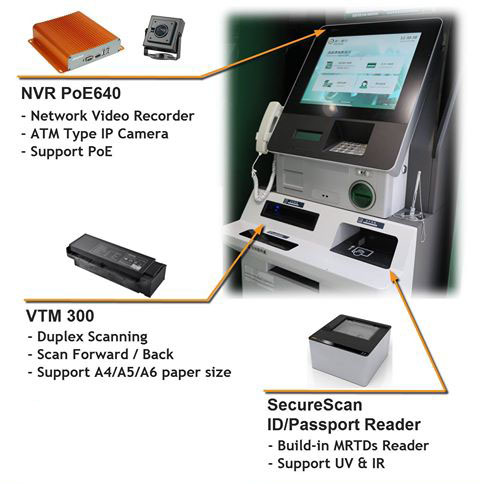

| Plustek Self-Service Kiosk Application | |
|
|
| X150 - Passport Reader --> Click here | |
| Specification | |
| Image Sensor | CIS x 2 |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 dpi x 600 dpi |
| Scan Modes | Color: 48-bit Input; 24-bit Output |
| Grayscale: 16-bit Input; 8-bit Output | |
| B/W: 1-bit | |
| Scanning Speed | 30ppm / 60ipm (Color Mode, 300 dpi, A4) |
| Note: Scanning speed varies, depending upon the scanning software, CPU and RAM of PC. | |
| Scanning Area | Max: 216 x 594 mm (8.5" x 23.4") |
| (W x L) | Std: 210 x 297 mm (8.27" x 11.69") |
| Acceptable Paper | Max: 218 x 594 mm (8.6” x 23.4”) |
| Sizes (W x L) | Min: 54 x 54 mm (2.1” x 2.1”) |
| Acceptable Paper | Paper: 50g/m2 to 250g/m2 |
| Weight (Thickness) | Plastic card: Non-Embossed up to 1 mm & Embossed |
| up to 1.24 mm (ISO 7810) | |
| Power Supply | 24Vdc , 1.25A |
| Interface | USB 2.0 / 3.0 (Compatible) |
| Net Weight | 1.2 Kgs (2.67 Lbs) |
| Dimensions (W x D x H) | 289 x 90.7 x 60.7 mm (11.38" x 3.57" x 2.39") |
| Protocol | TWAIN compliant (Option) |
| OS | Windows 7 / 8 / 10 |
