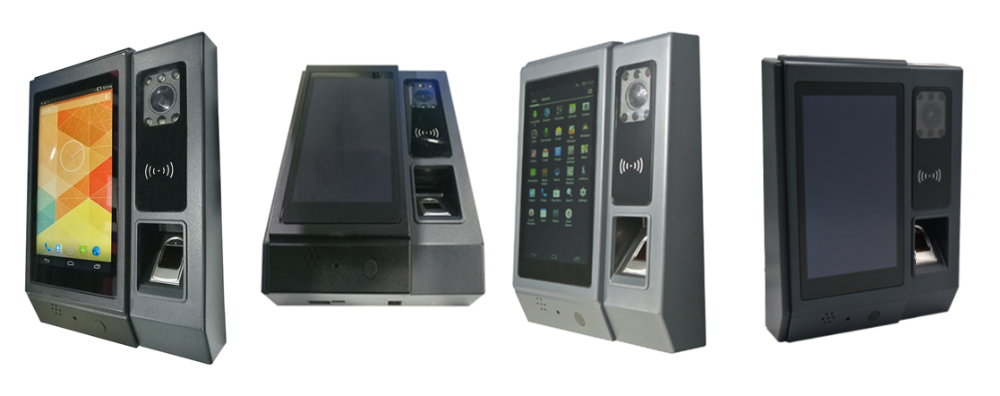

WAC A5
Biometric Android Fingerprint Time Attendance/ Access Controller with Camera
• Android 6.0 embedded operating system.
• Capacitance fingerprint scanner, Support TrueSafe fingerprint identification.
• Communication with GPRS/GSM, 3G, EDGE, WIFI, Bluetooth. Optional 4G
• Read Type A/B NFC standard card
• 2.0 mega pixels professional camera for face recognition
• 3rd party access control function
Specifications
OS
Android 6.0 Marshmallow
CPU
Dual-Core Processors ARM Cortex-A9 1.3GHz
RAM
DDR 1 GB, Optional: 2 GB
Built-in memory
8GB, Optional: 16 GB
External memory
SD card: Up to 32G
Display
5-inch LCD Capacitive Color touch screen with 1280×700 resolution.
Camera
2.0 Mega pixels professional camera for face recognition
SIM Slot & Ports
One SIM slot, optional: 2 slots; Micro USB2.0
Power Supply
12V
Battery
4000mAh

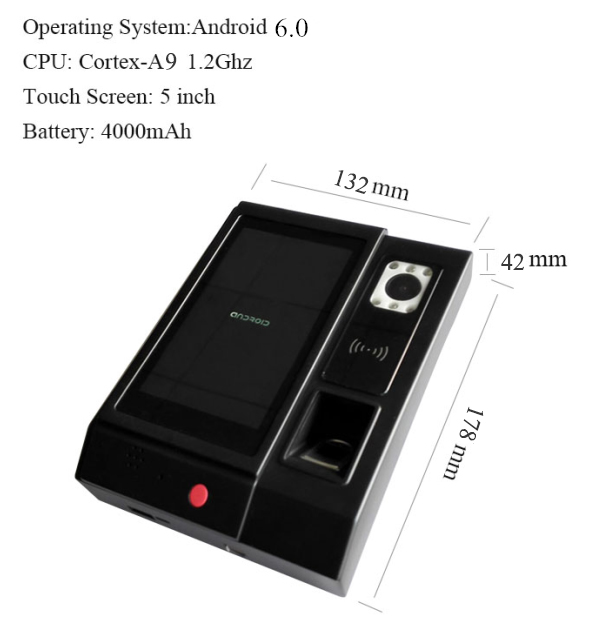

Device Dimension
L×W×H: 178×132×42 (mm)
Package accessories
Device bag, Screwdriver, Power adapter
Biometrics
Fingerprint Sensor
Built-in capacitive fingerprint sensor, Optional: Optical sensor
Image size
500DPI, 256*288 pixel
Capacity
5000 on Android terminal, 1000 on fingerprint chip
Android 6.0 Marshmallow
CPU
Dual-Core Processors ARM Cortex-A9 1.3GHz
RAM
DDR 1 GB, Optional: 2 GB
Built-in memory
8GB, Optional: 16 GB
External memory
SD card: Up to 32G
Display
5-inch LCD Capacitive Color touch screen with 1280×700 resolution.
Camera
2.0 Mega pixels professional camera for face recognition
SIM Slot & Ports
One SIM slot, optional: 2 slots; Micro USB2.0
Power Supply
12V
Battery
4000mAh
Device Dimension
L×W×H: 178×132×42 (mm)
Package accessories
Device bag, Screwdriver, Power adapter
Biometrics
Fingerprint Sensor
Built-in capacitive fingerprint sensor, Optional: Optical sensor
Image size
500DPI, 256*288 pixel
Capacity
5000 on Android terminal, 1000 on fingerprint chip
Card and code reader
Mifare Card
Support: 13.56 MHz card, Type A/B and NFC type card
Connectivity
Cellular network
GPRS/GSM, EDGE, 3G, optional 4G
Wi-Fi
802.11 b/g/n
Bluetooth
4.0
GPS/AGPS
Support
TCP/IP
Support
Others Access Control
3rd Party Access control door lock function Support: Wiegand In/Out
OTA
Over the Air Upgrade Capability
Working Environment
Temperature: -10°C ~ 60°C Humidity: 0 ~ 95%
Certification
CE&FCC, IMEI GSM certificate
Industry Standards
FC, CE and BSMI.
Development support
IDE
Microsoft Visual Studio, Android Studio, Embedded Visual C++ and so on.
Development Language
C++, .Net, Java and so on.
Mifare Card
Support: 13.56 MHz card, Type A/B and NFC type card
Connectivity
Cellular network
GPRS/GSM, EDGE, 3G, optional 4G
Wi-Fi
802.11 b/g/n
Bluetooth
4.0
GPS/AGPS
Support
TCP/IP
Support
Others Access Control
3rd Party Access control door lock function Support: Wiegand In/Out
OTA
Over the Air Upgrade Capability
Working Environment
Temperature: -10°C ~ 60°C Humidity: 0 ~ 95%
Certification
CE&FCC, IMEI GSM certificate
Industry Standards
FC, CE and BSMI.
Development support
IDE
Microsoft Visual Studio, Android Studio, Embedded Visual C++ and so on.
Development Language
C++, .Net, Java and so on.
