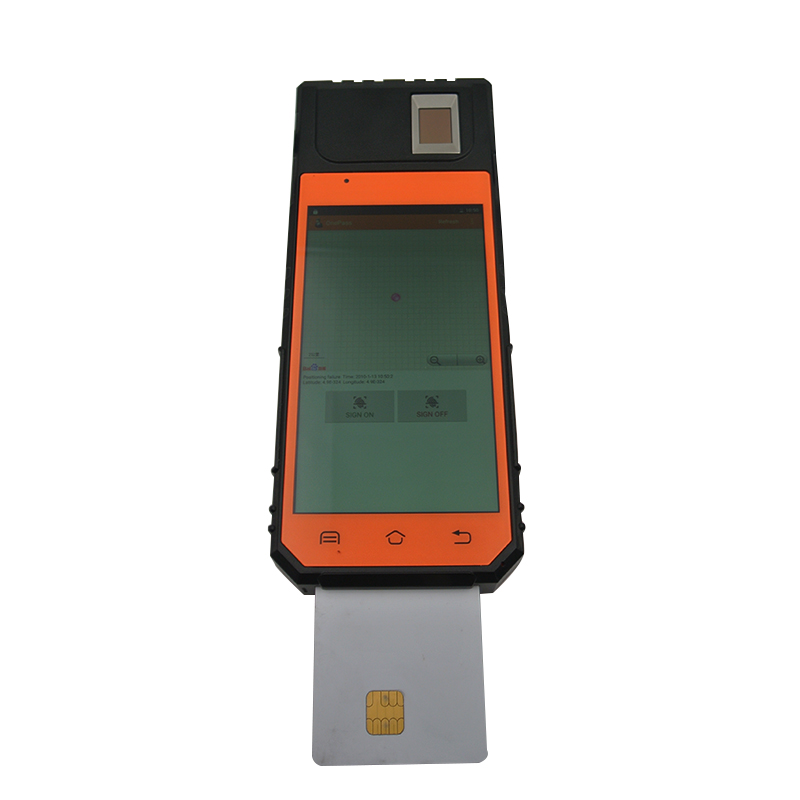

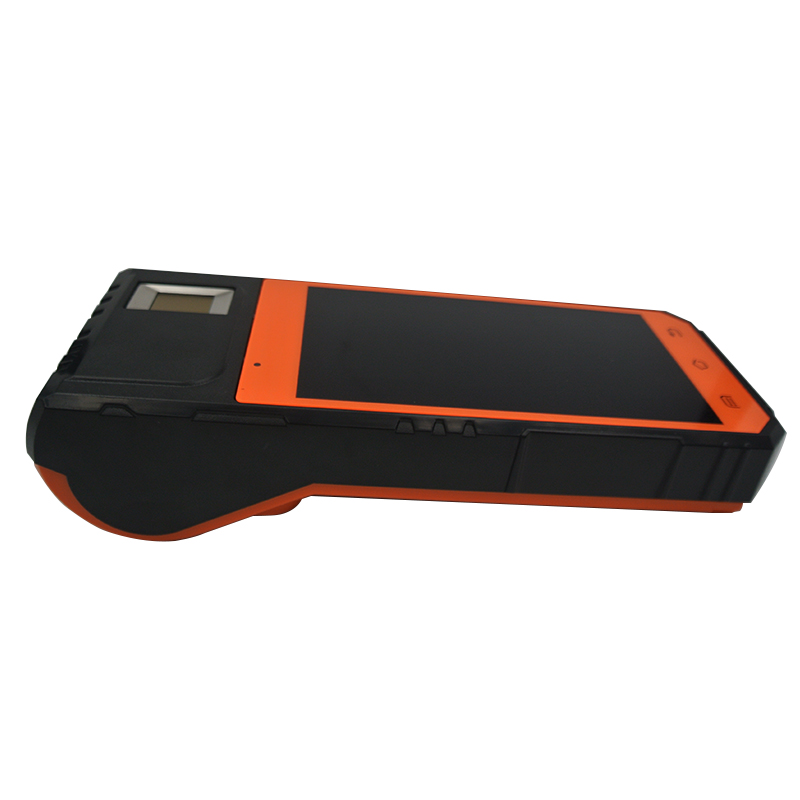

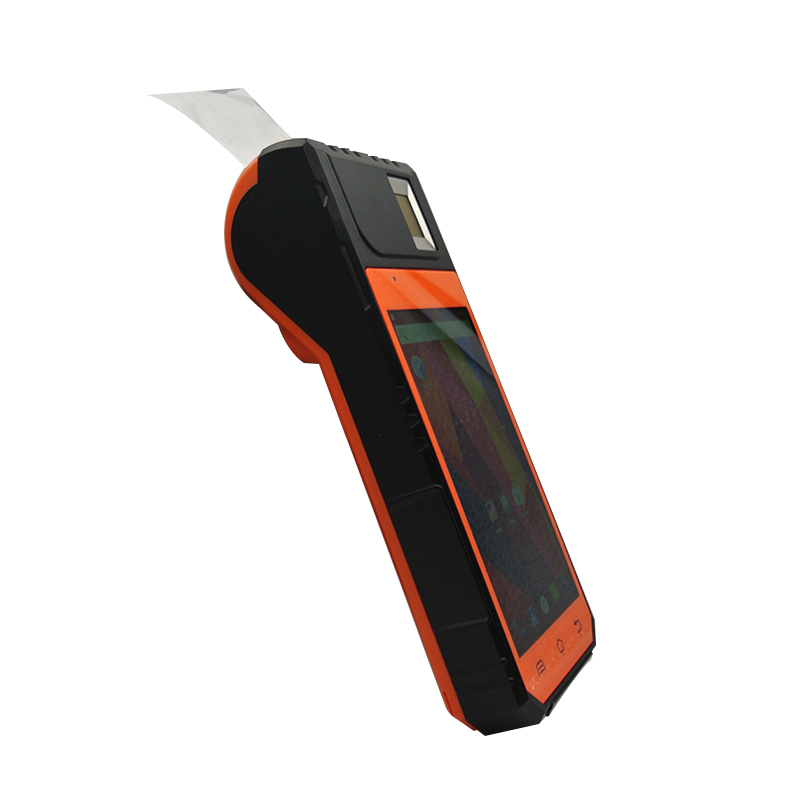

WAC FP09

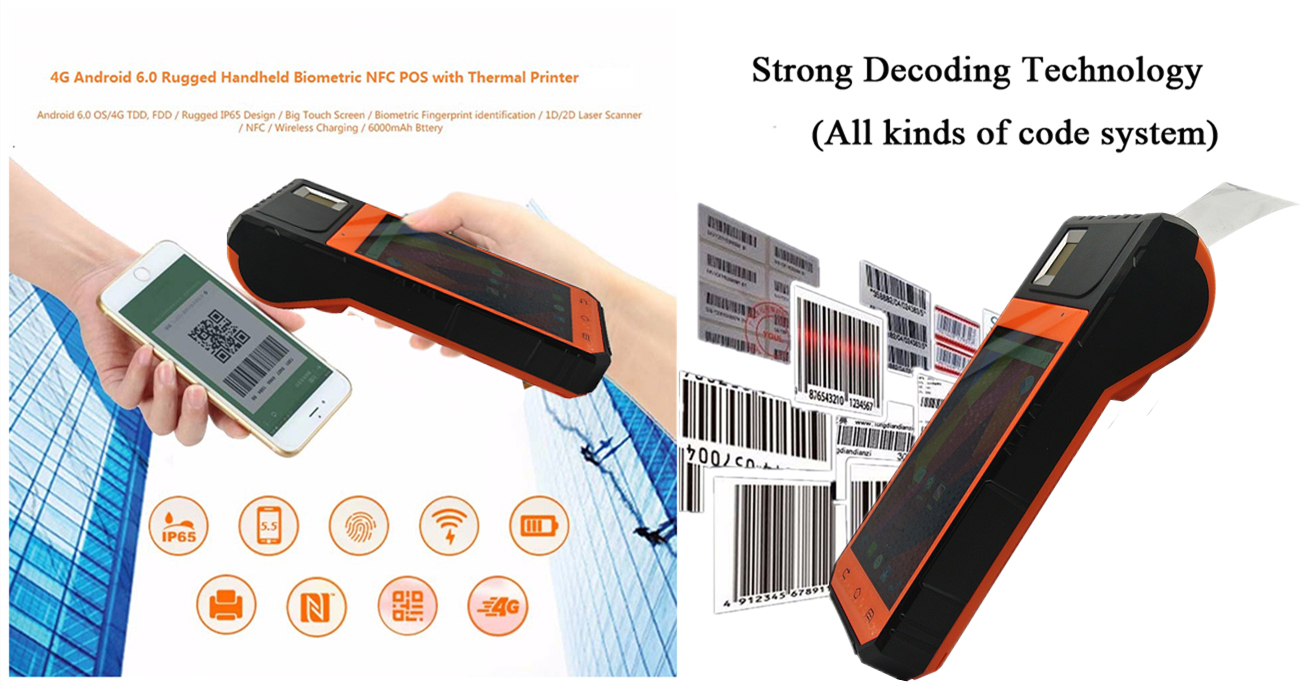

Android 4G Biometric handheld terminal with Built-in Printer & Barcode Scanner

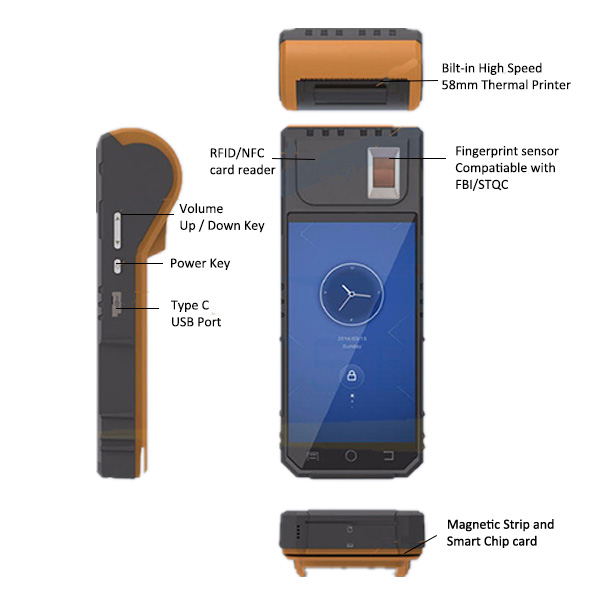

1.Supports RFID, GPS, 4G, 3D, WIFI,Wireless charging/Type C charging Way NFC reader.
2.Android 6.0 operating system.
3.Thermal printer: Width: 58mm
4.Support 2 SIM Card, PSAM
5.Bluetoothand Fingerprint, Barcode, fingerprint card identification.
Specifications
CPU
Quad-Cortex A9 processor 1.3Ghz
DDR
2GB
EMMC
16GB
WIFI
802.11 B/G/N
RFID
Read / Write 13.56MHz cards S50, S70 ISO 14443A/B ISO 15693 ISO 18000-3
Fingerprint Sensor
ISO19794-2/4 Standard Capacitive Fingerprint Sensor
Communication
WIFI, Bluetooth, 4G
Positioning
GPS
Camera
Front: 2.0M pixels; Rear: 8.0M pixels
Screen
5.5'' Touch Screen
SIM
2 SIM slots
SAM/PSAM
ISO7816 Internal Secured Access Module Support PSAM card, Comply with the unionpay standard
Quad-Cortex A9 processor 1.3Ghz
DDR
2GB
EMMC
16GB
WIFI
802.11 B/G/N
RFID
Read / Write 13.56MHz cards S50, S70 ISO 14443A/B ISO 15693 ISO 18000-3
Fingerprint Sensor
ISO19794-2/4 Standard Capacitive Fingerprint Sensor
Communication
WIFI, Bluetooth, 4G
Positioning
GPS
Camera
Front: 2.0M pixels; Rear: 8.0M pixels
Screen
5.5'' Touch Screen
SIM
2 SIM slots
SAM/PSAM
ISO7816 Internal Secured Access Module Support PSAM card, Comply with the unionpay standard
SD
Micro SD up to 64GB
Thermal Print
Width: 58mm, Speed: 80mm/s
Battery
Lithium-Polymer Battery, Wireless Charging USB
USB
Type-C / USB OTG
Barcode Format
(1D/2D barcode, standard; PDF417 optional to read all types of barcode)
• Code11
• Code39 / 93
• UPC / EAN
• Code128 / EAN128
• Interleaved 2 0f 5
• MSI Code, Industrial 2 of 5
• GS1 Databar
• QR Code
• PDF417
Operating Temperature
-20℃ to 70℃
Working Humidity
0-95%
Micro SD up to 64GB
Thermal Print
Width: 58mm, Speed: 80mm/s
Battery
Lithium-Polymer Battery, Wireless Charging USB
USB
Type-C / USB OTG
Barcode Format
(1D/2D barcode, standard; PDF417 optional to read all types of barcode)
• Code11
• Code39 / 93
• UPC / EAN
• Code128 / EAN128
• Interleaved 2 0f 5
• MSI Code, Industrial 2 of 5
• GS1 Databar
• QR Code
• PDF417
Operating Temperature
-20℃ to 70℃
Working Humidity
0-95%
