Basic Function
OS
- Android 5.1
CPU
-
Octa-core 1.3GHz ARM® Cortex-A53
WWLAN
-
FDD B1B3B7, TDD B38B39B40, WCDMA B1B2B5B8, EVDO BC0, GSM B2B3B5B8
Flash ROM
-
16 GB
RAM
-
2GB DDR3
Display
-
8 inches IPS 1024*768
Touch screen
-
Multi-point touch capacitive screen
GPS
-
YES
Bluetooth
-
v2.1+EDR / 3.0+HS / v4.0
Low Energy (LE)
WiFi
-
802.11 a/b/g/n
Protection class
-
IP65
Drop resistance level
- 1.5m
Camera
- Rear Camera 13MP
Camera
-
Front Camera 5MP
Camera
Keypad
-
Front/Side 12Keys
Interface
- Micro-USB Connector USB 2.0 OTG
-
SIM Card Slot 2 Micro SIM Slot
-
TF Card Slot *2
-
Charging Micro USB + Magnetic charging
-
Audio Jack *2
External
-
Interface USB Host *1
-
RS232 *2
Battery
-

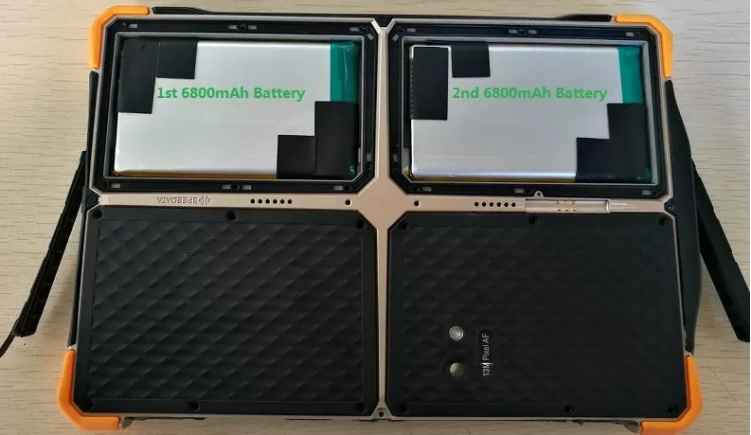

Type rechargeable Li-ion battery 6800mAh*2
-
Standby Time 600hours
-
Calls Time Up to 6hours
-
Charging Time 8hours (magnetic charging)
Physical Characteristics
-
Dimension 270*176*20mm
-
Weight >800g with battery (according config)
Operating temperature
-20°C to 50°C / -4°F to 122°F
Storage temperature
-30°C to 70°C / -22°F to 158°F
Humidity (non-condensed)
Operating
10% to 90% / Storage 5% to 95%
Electrostatic discharge
± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation
CE
Option Function
NFC Reader
Fingerprint Reader
-
crossmatch TCS1(With FBI, FIPS-201, ISO19794, ANSI, WSQ)
-
option 2 STQC Crossmatch fingerprint reader

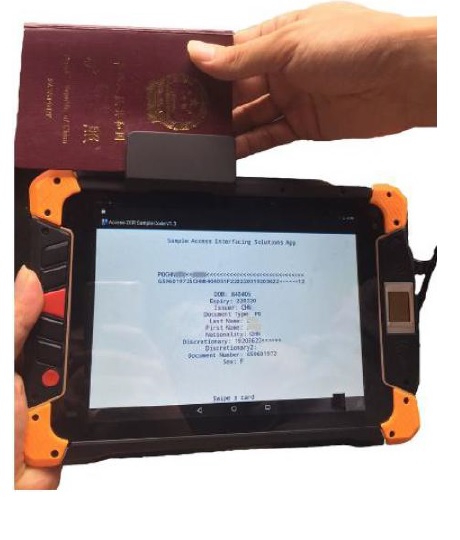

MRZ Passport reader
