TPS980Pro

3D Face Recognition Access Control and Time Attendance.  As Smart Facial Recognition system, TPS980Pro can be government biometric security control system, Employee Attendance Machine, School Attendance system, Time Card Machine, etc.

3D Face Recognition Acess Control

TPS980Pro is a face recognition machine that captures 3D features of the face and is highly anti-counterfeiting. It's outfitted the infrared sensor and 3D-depth sensing camera. Therefore, TPS980Pro can detect face portraits even in the dark.

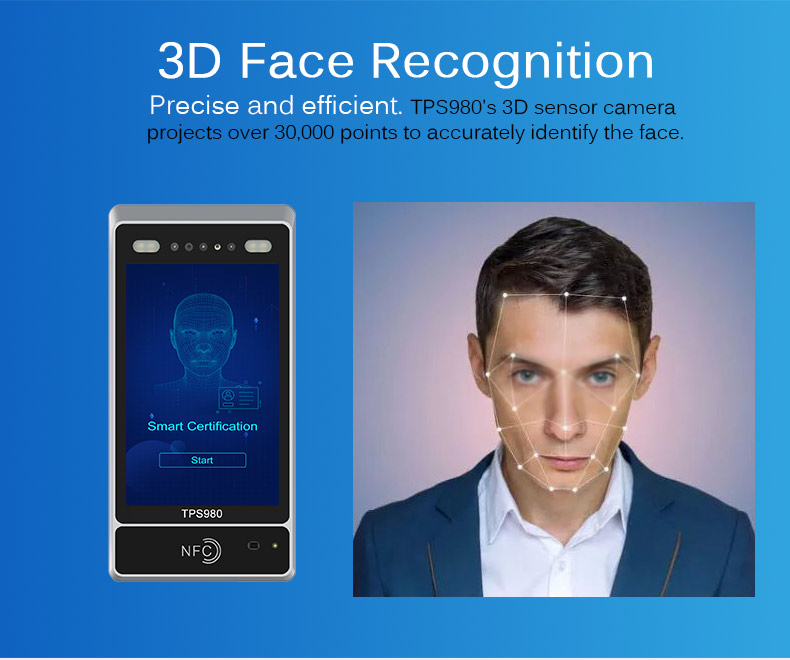

3D Face Recognition

Compared with 2D face recognition, 3D face recognition is accurate and efficient, and can quickly identify an individual. The TPS980Pro's 3D sensor camera has built-in sensors and a dot matrix projector that projects more than 30,000 points to accurately identify the user's face.

Live Detection

3D face recognition can recognize the distance of the face to judge the contour of the face, and detect the highly anti-counterfeiting, and judge and reject the intrusion of fake and shoddy, such as pictures and video streams

Infrared Face Recognition

The infrared camera and the LED light ensures accurate capture and resolution of face information even in the darkness.

Infrared Sensor The infrared sensor can sense the proximity of the human body and quickly punch the face recognition program to achieve hands-free touch control.

Multi-dimensional Verification

Face Scanner machine TPS980Pro provides multiple dimensions of ID acquisition and authentication. In addition to face verification, fingerprints and NFC readers can be optional. Multi-factor authentication ensures more accurate and secure identification.

Telpo Face

Telpo Face, a new and compelling standard web tools, can be developed rapidly and deployed at the terminals, beneficial for the partners who lack good enough development capabilities.

Strong Performance

Equipped with Android 5.1 os or above, Quad-core 1.8Ghz, Telpo TPS980Pro can accurately and efficiently run complicated applications without waiting. Telpo TPS980Pro Support the RK3288 scheme and RK3399 scheme selection.

Specification

  • OS
  •   Android 7.1
  •   Linux (Optional)
  • Processor
  •   Dual-Core 1.8GHz+Quad-Core 1.4GHz
  •   Octa-Core 1.8GHz or above(Optional)
  • Memory
  •   2GB DDR, 8GB eMMC
  •   4GB DDR, 16GB eMMC (Optional)
  • Display
  •   8-inch, 800*1280
  • Keypad
  •   1 Reset Key
  • Sensor
  •   Infrared Sensor
  • Front Camera
  •   3D Depth Sensing Camera
  • Fill Light
  •   White LED
  • Contactless Card Reader (Optional)
  •   ISO14443 Type A/B, Mifare,
  •   ISO18092 compliant
  •   EMV Contactless L1,
  •   Paywave, Paypass
  • Fingerprint Scanner(Optional)
  •   ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4
  • SIM Slots (Optional)
  •   1 SIM
  • Communications
  •   Ethernet/WiFi/Bluetooth LTE (Optional)
  • Peripheral Ports
  •   1 DC Port, 1 RJ45, 1 micro USB,
  •   1 Door Lock, 1 Wiegand, 1 RS485
  • Audio
  •    Digital Audio Speaker, Microphone
  • Power Supply
  •    12V/2A
  • Bracket (Optional)
  •    Wall Mount Bracket, Turnstile Mount Bracket
  • Dimensions (mm)
  •    272 (L)*135 (W)*30 (H)
  • Environmental
  •   Operating temperature: -10℃ ~ 45℃
  •   Storage temperature: -25℃ ~ 60℃
  • MDM (Optional)
  •   Mobile Device Management
  • Certification
  •    CE
