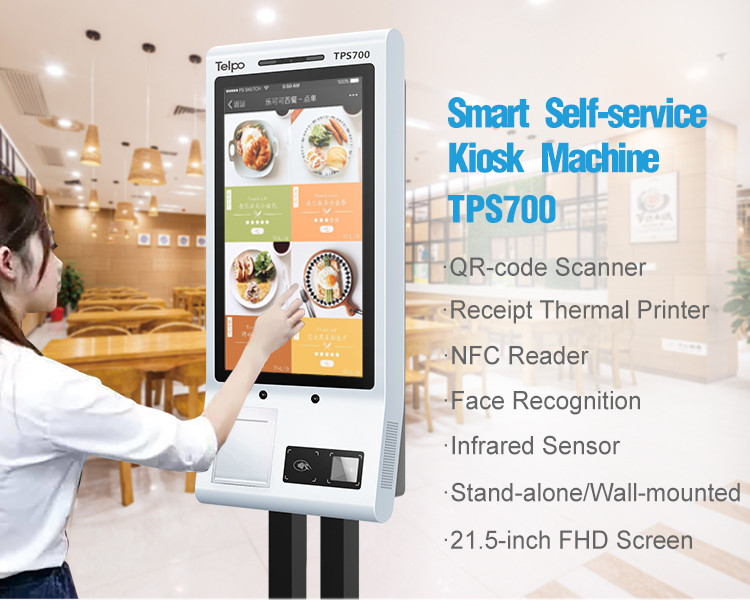

TPS700

Touch Screen Android Fast Food Self Service Ordering Kiosk Machine

TPS700 is a self-service ordering kiosk machine with powerful features such as QR code recognition (or scan code payment), NFC recognition, thermal printing, face recognition, infrared sensing and more. Interactive Kiosk

Smart Self-Service KIOSK

TPS700 combines information display with customer interaction. In the idle time, the TPS700 ordering terminal can display the advertisement cycle. The infrared sensor can detect the proximity of the customer and automatically open the ordering system. Kiosk machine TPS700 is equipped with 4G/Wi-Fi/Bluetooth, etc. So the APP in mobile phone and self-service system of kiosk machine can transmit information. It is suitable for ordering food in restaurants, saving customers' waiting and improving the enthusiasm of the waiters. We offer the SDK for the convenience of partners development.

Industrial-grade Motherboard Design

New self-service ordering machine TPS700 adopts industrial-grade motherboard solution, onboard RK3288 chipset, stable performance, bringing users a fast and smooth control experience. In addition, the ordering machine TPS700 built-in Quad-core CPU, storage solution is 2G RAM + 8GB eMMC, can expand capacity through TF card, up to 32GB.

21.5-inch Sunlight Readable and Touchable Screen

On the screen, the TPS700 uses a 21.5 inch capacitive full HD screen to display clear and comfortable viewing. With 5 points touch screen and G+G (surface toughened GLASS + GLASS material touch screen) toughened glass film protection, the screen is wear-resistant and corrosion-resistant and touch sensitive.

High-speed Thermal Printer

A high-speed thermal printer was built-in Telpo Android self-service ordering machine TPS700 which is 100mm/s print speed, 500,000 cutter life, 50KM print life.

Agile Qr-code Payment

Self-order Kiosk TPS700 has a built-in QR scanner, including LED lighting, which can quickly and accurately scan the QR code of the mobile phone and realize mobile payment, such as WeChat pay and Alipay.

All Network Connectivity

Wi-Fi and Bluetooth are supported in communication.

Face Recognition Camera

Equipped with a face recognition camera, TPS700 is capable of supporting precise capture and identify the biometric features. It can be customized the 3D-structured light camera.

Infrared Sensor

When the customer is close, the TPS700 switches to the operation interface; the advertisement is displayed at a normal time.

Our self-service terminals are the ideal choice for restaurant and retail store industries where a secure, efficient self-service unattended payment is required. We offer a wide range of deployment options including full EMV, PCI terminals with PIN entry, MSR / smart card readers and contactless readers for NFC transactions. We work with you and our partners to agree the right deployment that best POS system meets your requirements.

Applications

- Retail Distribution Center
- Retail Store/ Supermarket
- Fast Food Restaurant
- Self-Service Machines
- General Checkout Stations
- ATM Machines
- In-store Kiosks
- Hotel / Concierge Desk
- Thin-client Application
- Home Automation
- Multimedia Entertainment

Custom Service

Optional Features & Specification

Specification

OS Android 5.1 or above
CPU Quad-Core 1.6GHz Hexa-Core 1.8GHz (Optional)
Memory 2GB RAM, 8GB FLASH 4GB RAM, 16GB FLASH(Optional)
Display 21.5-inch,1920*1080, 5 points touch screen, G+G
Printer Paper width 80mm, Φ80mm,with auto cutter Printing speed:150mm/s
Contactless card reader ISO14443 Type A/B, Mifare®, ISO18092 compliant
Sensor(Optional) Infrared Sensor
Barcode/QR code Reader(Optional) 2M Pixel, DXVA
Camera(Optional) Face Recognition Camera(2M Pixel) 3D Depth Sensing Camera(Optional)

Communications WiFi 802.11b/g/n, Bluetooth 4.0, Ethernet 4G (Optional)
Peripheral Ports 4 USB Host, 1 RJ45, 1 Micro USB
Audio Loudspeaker
Power Supply 24V/5A
Others Wall-mounting Bracket Floor-stand(Optional)
Volume(mm) 790(L)x357(W)x85(H)
Weight 21KG (Include Outer Packing)
MDM (Optional) Mobile Device Management
