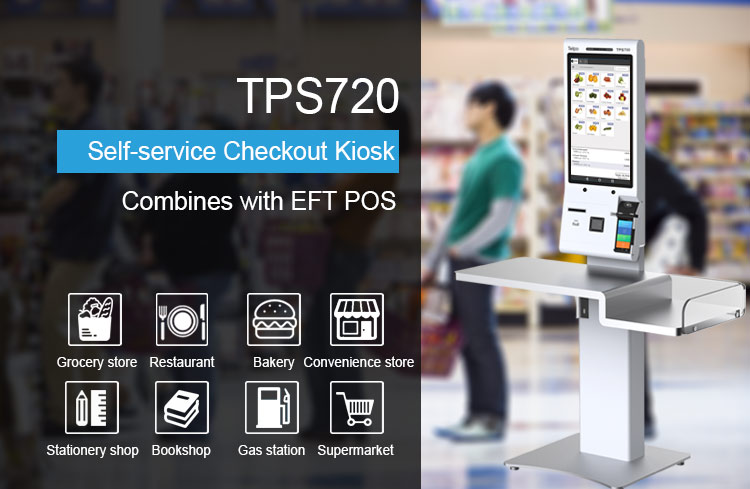

TPS720

Retail Self Checkout Machine

Smart Self-Service KIOSK

TPS720 is an Android OS Self-service checkout machine that combines payment terminal, barcodes scanner, touch-screen monitor, and faces recognition. The self-service terminal TPS720 adds a cashier counter in stainless steel which allows customers to self identify the products'barcodes and electronic payment without having to queue. It is a compact self-service solution for small retail stores, unmanned stores, supermarkets, grocery stores, bookshop, bakery, etc.

Android OS

The self-checkout kiosk TPS720 adopts android 5.1, or adapted as your requirement.TPS720 Android self-service machine supports secondary development. We provide standard SDK files to developers. At the same time, Telpo has its own R&D team to provide customers with technical support during the secondary development process.

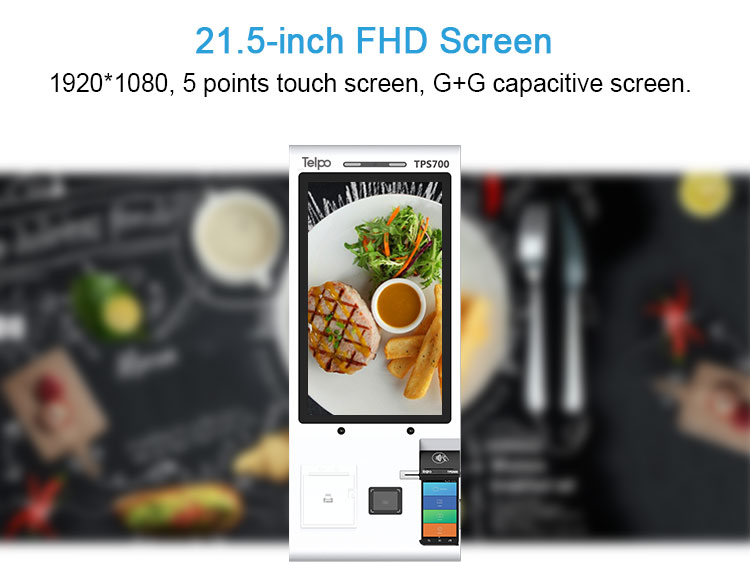

21.5 inch FHD Screen

Display the food and pictures clear.

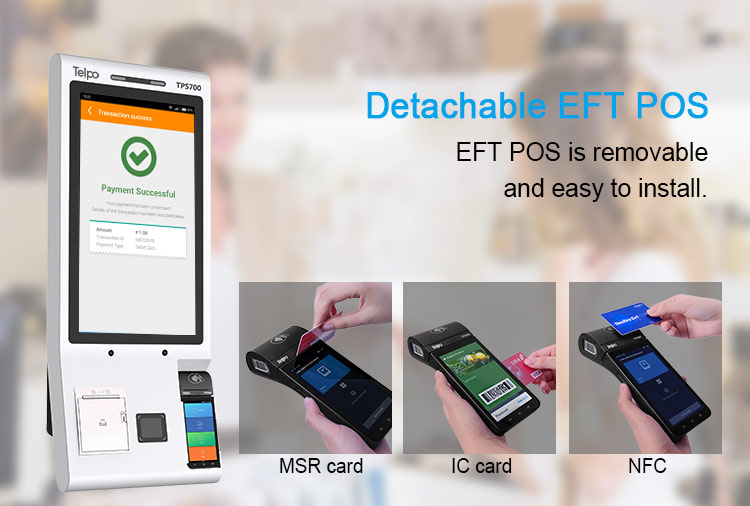

Detachable EFTPOS Machine

Self-service Kiosk machine has an EFTPOS TPS900 which are EMV, PCI, PayPass, Paywave, etc approved. So the self-service machine can be developed and receive nearly all kinds of payment methods, such as NFC payment, magnetic or smart chip card. Moreover; it supports a variety of popular smartphone payment methods, such as Alipay, Wechat Pay, Apple Pay and so on.

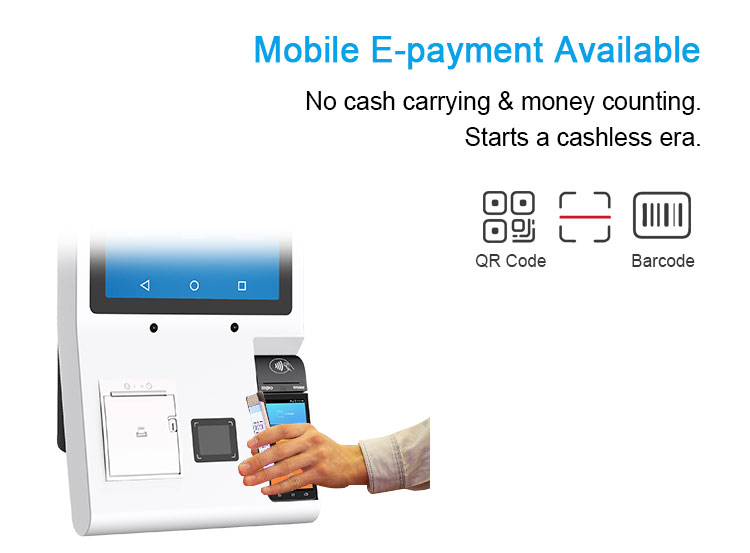

Mobile E-payment kiosk

Cashless Payment instead of the traditional payment. No need to carry cash or coin, and money counting. Telpo TPS700A supports multiple Mobile E-payment, such as NFC, QR-code payment. Start a self-service and cashless era.

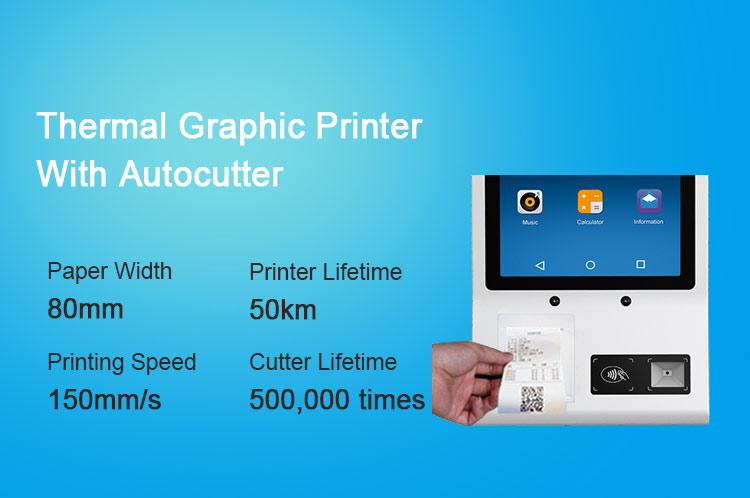

High-speed Thermal Printer Device

TPS720 Inbuilt an 80mm width thermal graphics printer. It prints receipts at high speed without jamming. Changing paper rolls is easy.

Human Face Capture and Identification

3D face identification makes your business more secure and powerful. Some retailer starts to use the face recognition technology in order to know more about their customers and make some personal custom.

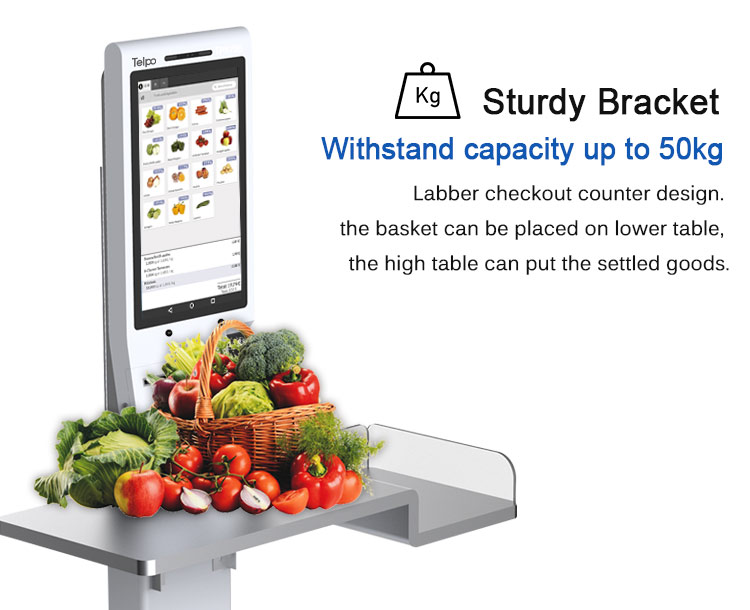

Sturdy Bracket

  • Withstand capacity up to 50KG

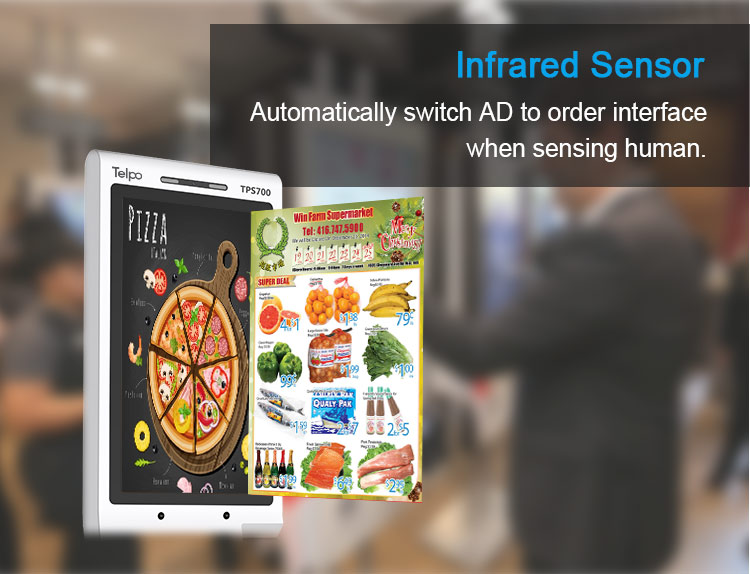

Infrared Sensor

Automatically switch ADs to order interface when the customers are approaching.

MDM/ TMS System

manage your devices at any time and anywhere.

Specification

  • Name All-In-One Kiosk
  • OS Android 5.1 or above
  • CPU Quad-Core 1.8GHz
  • Memory 2GB RAM, 8GB FLASH Ext. TF(micro SD) card
  • Display
  • ● Main LCD: 21.5",1920*1080, 5 points touch screen ,G+G
  • Printer
  • ● Paper width 80mm, Φ80mm, 150mm/s, with auto cutter
  • Camera
  •   ○ 2M Pixel, fixed focus(Barcode hardware decoding)
  •   ○ Face recognition camera (2M Pixel)
  • Communications WiFi 802.11b/g/n, Bluetooth 4.0, Ethernet
  • Peripheral Ports
  • ● 1 USB Host, 1 RJ45, 1 Micro USB, 1 RS232,1
  • Audio Output Audio
  • ● Input--Digital audio speaker ○ Output--Microphone
  • Power Supply Input:100-240VAC
  • Others
  • ○ Floor stand
  • ○ 2 Infrared Sensors
  • MDM(Mobile Device Management)
  • ● Standard ○ Optional
  • *Reserve the right to change the parameters without prior notice
